Latest Part

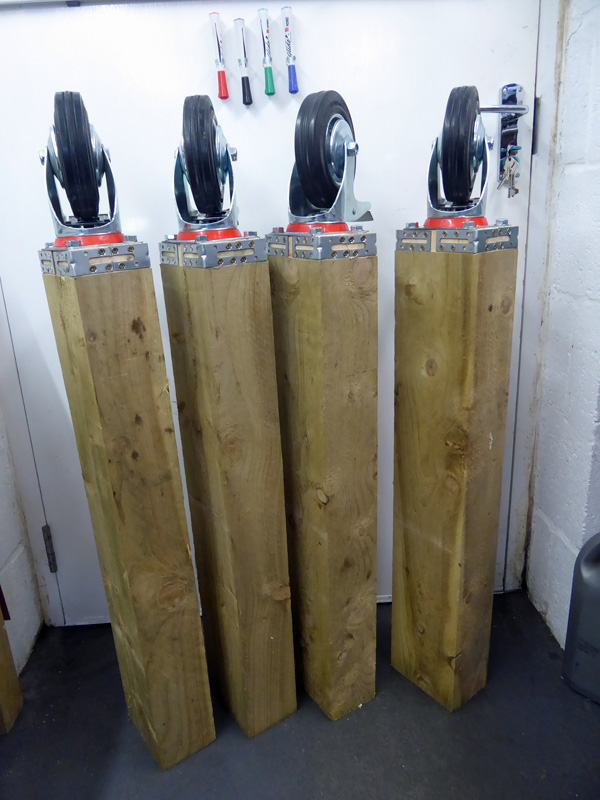

05-05-24 To continue with the model I have decided to make a trolley for it based on the Idea of a hospital trolley these are the first parts 4 legs with 6" castors

extrusion press

extrusion press

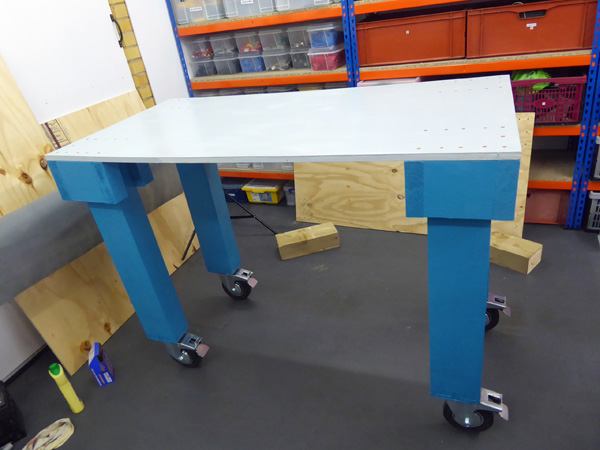

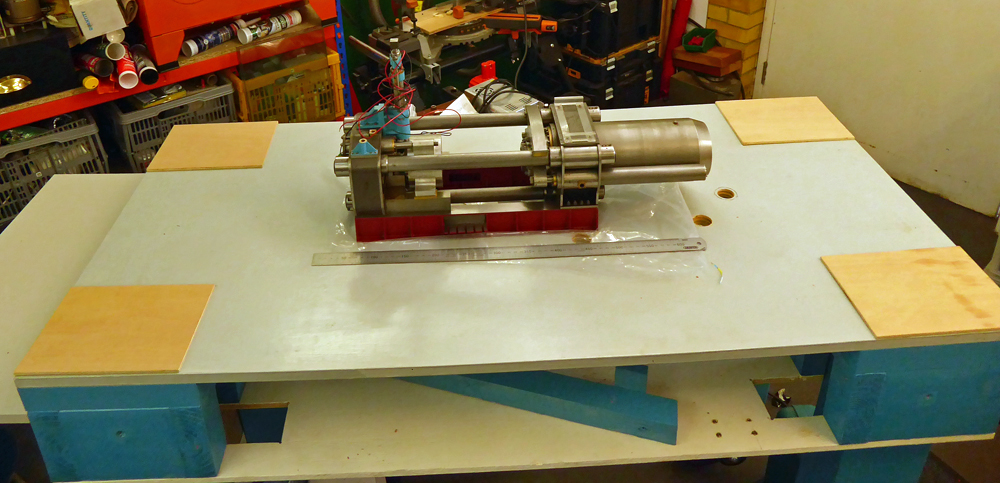

First assembly

extrusion press

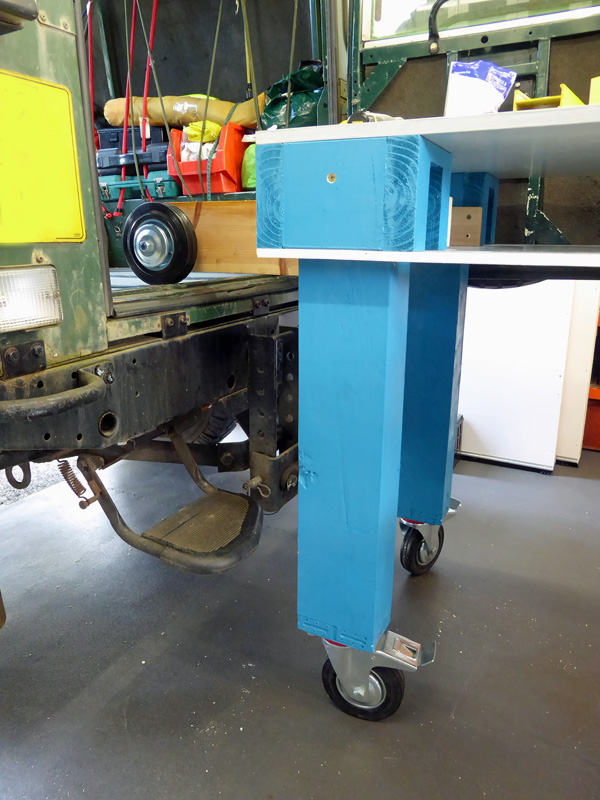

Just the right hight to roll into the Landrover

extrusion press

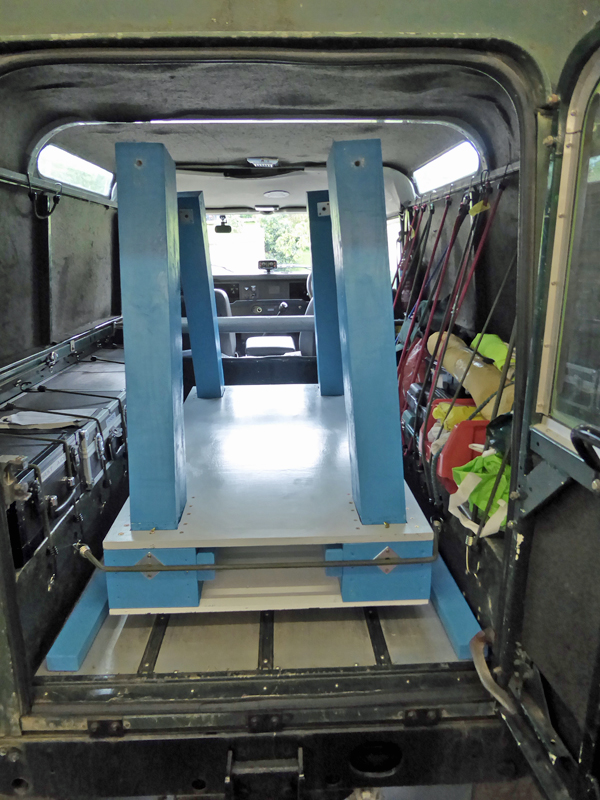

Its a good fit

extrusion press

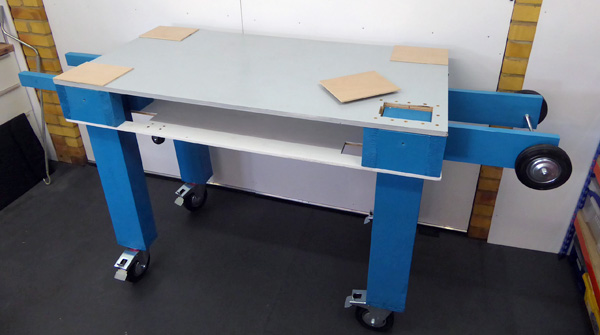

Finished Transport - Display Trolley

.
